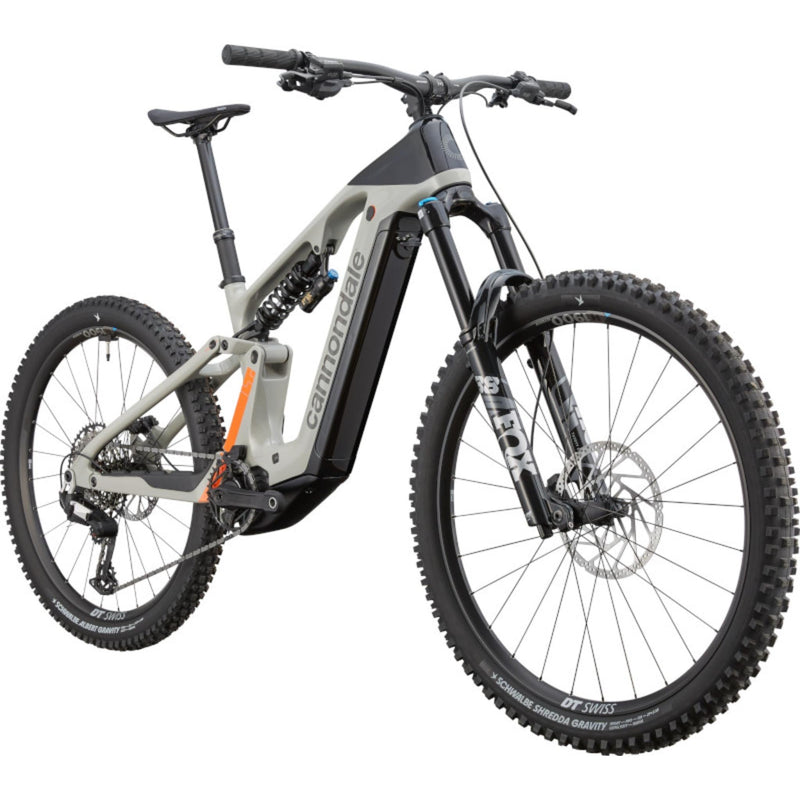

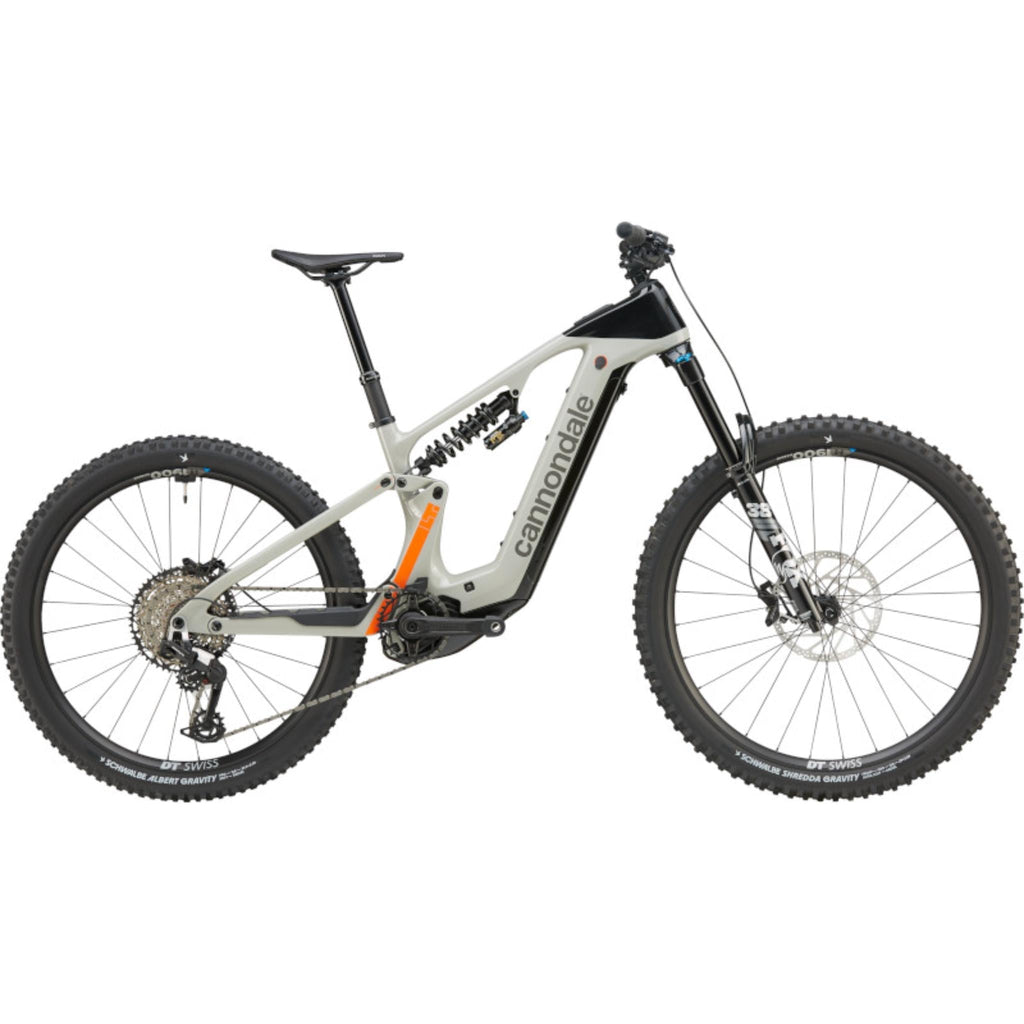

Cannondale Moterra Carbon LT 1 2025

Equipped with Proportional Response technology, the Cannondale Moterra Carbon LT 1 2025 offers individualized suspension layouts, geometry, and frame construction to maximize handling efficiency and precision. Experience a ride that truly feels like it was tailored to your needs.

Featuring on the Cannondale Moterra Carbon LT 1 2025 Bosch's latest Performance Line CX & 800Wh battery, arriving at your destination is now a breeze. But don't be fooled, the real excitement begins now! This powerhouse boasts 170mm/165mm of suspension travel, a piggy back shock, and a rugged build, making it more than capable of taking on any challenge alongside you.

Highlights

• Proportional Response Tuned carbon frame, 165mm travel / Fox Float Performance fork, 170mm travel
• Bosch SmartSystem - 750wh battery & Performance CX motor
• Sram T-Type 12-speed drivetrain / TRP brakes

Sizing:

• M: 162 - 175cm
• L: 172 - 185cm
• XL: 182 - 195cm

Specifications::Moterra Carbon LT 1

• Discipline: Enduro/All Mountian

• Material: Carbon

• Front Travel: 170mm

• Rear Travel: 165mm

• Wheel Size: MX

• Warranty: Limited Lifetime (frame)

Frame - Moterra LT Carbon, 27.5” rear wheel, 29” front wheel, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible
Fork - Fox Float Performance 38, 170mm, Grip Damper 3Pos, 15x110mm Kabolt thruaxle, tapered steerer, 44mm offset
Rear Shock - Fox DHX Performance, Coil, 2 pos adj, 230x65mm
Drive Unit - Bosch Performance Line CX
Battery - Bosch PowerTube, 800Wh
Display - Top Tube System Controller w/ Mini Remote
Charger - Bosch 4A
Rims - DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready)
Hubs - (F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 Ratchet System 18, 12x148mm thru-axle, 6-bolt
Spokes - DT Swiss Competition, straight pull
Tyres - Schwalbe TBA
Pedals - Not Included
Crank - e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
Chain - SRAM TBA T-Type, 12-speed
Cassette - SRAM TBA T-Type, 12-speed
Rear Derailleur - SRAM TBA, T-Type
Shifters - SRAM TBA T-Type
Handlebar - Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Grips - Cannondale TaperRidge
Stem - Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
Headset - Acros ICR, 1.5” to 1.8”, sealed bearings
Brakes - TRP TBA
Brake Levers - TRP TBA
Saddle - Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
Seatpost - Cannondale DownLow Dropper, internalrouting, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Sizes - SM, MD, LG, XL
Extras - Tubeless Valve Stems, pre-installed front light cable, Bosch PowerMore range extender compatible
